Ekasi ENERGY - BIOMASS RELATED PRODUCTS & SERVICES
FABTAINER
A complete pellet manufacturing plant built into a 12 hi-top shipping container. The plant ships fully tested and operational. Plant setup in final location takes less than 2 days. The plant can produce 6mm pellets from a variety of dried biomass feedstocks
FABSTOVE COOKSTOVE KITS
A forced biomass gasifier gasifier kit that meets ISO Tier 4 standards for emissions and efficiency. The stove is manufactured and sold in component form to lower shipping costs and allow for local assembly
FABTAINER FEATURES
LOCAL MANUFACTURE
The core mechanical components of the plant are manufactured in South Africa and use standard spares (bearings, filters, roller etc). This lowers costs where production is in remote locations. Years of experience have adapted the mechanical designs to offer simple repair tooling and techniques.
TURNKEY OPERATION
The container plant is fully configured and tested before shipping. This means the plant is fully operational on delivery except for the hammer mill extractor and ducting which is easily mounted.
CONTINUOUS & AUTOMATED OPERATION
All automation is controlled from a centrally located control panel that allows for automatic or manual control. Feeding and production rate are controlled by variable speed drives and the feedstock buffered in a live bottom tank.

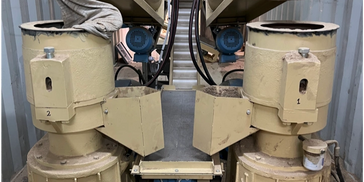

2x PELLET MILLS
The two pellet mills are the core of the plant operation and where the highest pressures are experienced and wear parts are of utmost importance. We have chosen to duplicate the oil cooled mills so that failure of one plant does not stop production and parts are interchangeable. This also lowers the cost of parts inventory
INPUT AND OUTPUT viA side of container
Material feeding is “side fed” into the plant. This compact configuration makes inbound and outbound logistics easy to manage.
LOW POWER REQUIREMENTS
The plant has been designed to operate with a 100kW supply and is automated in such a way that the plants starts up in sequence avoiding large power surges. It can be operated off a 3 phase mains supply or offline power such a a diesel generator or solar power with batteries.

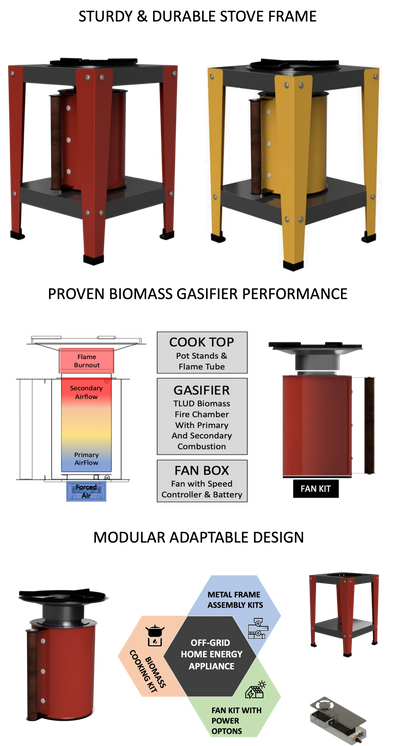

FABSTOVE FEATURES
Designed for and built in Africa
- Strong sturdy frame for large pots
- Easy loading with removable gasifier canister
FAN ASSISTED AIRFLOW FOR COMBUSTION CONTROL
- Small internal DC fan controls combustion
- Complete heat control
- Multiple battery control options with PAYGO options
SAFE TO USE INDOORS MEETING modern cooking standards
- Combustion efficiency >40%
- Low emissions (PM 2.5 Smoke & Carbon monoxide)
USES RENEWABLE BIOMASS FUEL
- Optimised for use with biomass pellets (6 to 10mm)
- MADE FROM RECYCLED WASTE OR SPECIFICALLY GROWN ENERGY CROPS
MODULAR DESIGN AND ASSEMBLY
